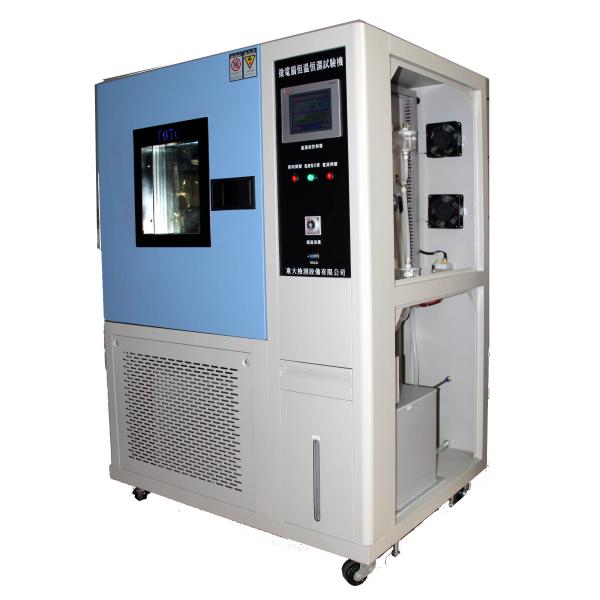

1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material

  • 1
  • 2

Brand Name : SKYLINE

Model Number : SL-E01

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1 unit / week

Delivery Time : 10 workding days

Packaging Details : plywood case

Skyline : Contant Temperature and Humidity Testing Chamber

Controller : LCD Colour Touch Screen

Stability : ± 2.5% RH.

Temperature : -40 ℃ ~ 150 ℃

Material : inner box 304# stainless steel

Temperature distribution : ± 1.0 ℃

Contact Now

1500L Temperature and Humidity Testing Chamber with 304 Stainless Steel Material

It is used mainly in the testing of electronics, components, pharmaceuticals, boards, quality control and R&D.

Parameters


Performance: (for no-load, the air-cooled at room temperature 25 ℃)​

​

Temperature range -40 ℃ ~ 150 ℃
Temperature Control Stability ± 0.2 ℃
Temperature distribution is ± 1.0 ℃ (above 80 ℃ and below -40 ℃ the temperature distribution is ± 1.5 ℃)
Temperature rise time room temperature rise to 150 ℃ need 35 minutes
Cooling time
Temp range Time needed 20~ 0℃ About 30 minutes 20~-20℃ About 40 minutes 20~-40℃ Around 50 minutes
Humidity 10% ~ 98% RH. Note: 10% at 60 degrees when the temperature and humidity control can be
Stability ± 2.5% RH
Humidity distributions are degrees ± 3%
Temperature and humidity control (ordinary normal range)

Special Features of Temperature and humidity climatic testing chamber

  1. Controller: Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
  2. View window: A large transparent glass window to observe the testing samples.
  3. Material: (inner chamber materialz) SUS#304 stainless steel plate; (exterior chamber material) stainless steel plate
  4. Insulation: Double-insulated airtight container
  5. Compressor:imported French " Tecumseh "

Safety device of Temperature and humidity climatic testing chamber

  • Humidifier dry-combustion protection
  • Independent over-temperature protection
  • Water shortage protection
  • Over-current protection
  • Refrigerant high-pressure protection switch
  • Over-current circuit breaker
  • Earth leakage protection and so on.
  • 1500L Temperature and Humidity Test Chamber with 304 Stainless Steel Material
