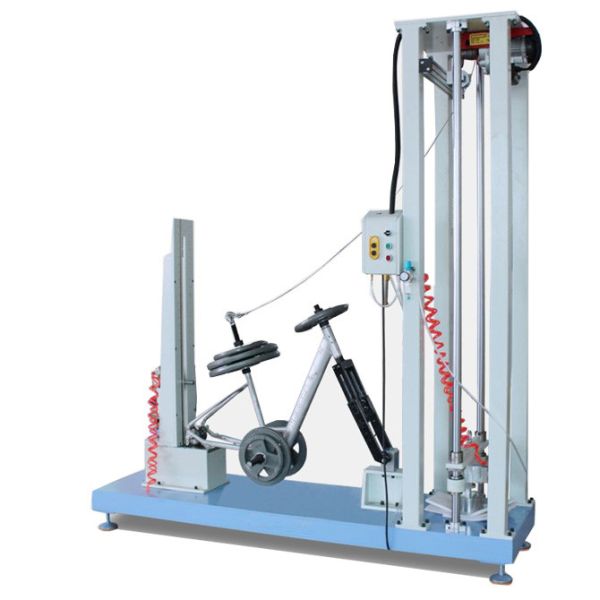

Front Fork Front To Back Pouring Heavy Impact Tester EN 14764 / ISO 4210

Name: Front Fork Front To Back Pouring Heavy Impact Tester EN 14764 ISO 4210
Brand: SKYLINE
Price: 1 USD

Cheap Front Fork Front To Back Pouring Heavy Impact Tester EN 14764 / ISO 4210 for sale

Brand Name : SKYLINE

Model Number : SL-BT94

Certification : CE , Calibration Certificate

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiated

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 unit / month

Packaging Details : plywood case

Seat tube load : 70Kg-90Kg

Frame drop height : 200-300mm

Height marker : can be adjusted according to the height of the test piece combination zero marker

The upper and lower limit : moving device upper and lower limit protection switch and positioning

Falling trigger : Adopt electromagnetic clutch device

Weight : 160KG

Power supply : AC220V,15A

Dimension : 2000*700*1750mm (W*D*H)

Contact Now

EN 14764/ ISO 4210 Bicycle Frame Front Fork Front to Back Pouring Heavy Impact Tester

Application Of EN 14764 Bicycle Frame Front Fork Front to Back Pouring Heavy Impact Tester

The machine should be centered on the rear axle attachment point and can rotate freely in the vertical plane, the front fork is supported on a flat iron, so that the frame is in the normal position, the saddle straight tube is stabilized with a 70kg counterweight fixed to the saddle straight tube, so that its center of gravity falls on the axis of the straight tube and is 75mm higher than the surface of the saddle cross tube, and from the axis of the cross tube, the frame assembly is rotated so that the center of gravity of the counterweight is turned to the vertical of the rear axle. Then let the frame fall forward freely and hit the iron accounted for, to repeat the test to get two impacts.

Test principles

According to the standard EN14764:2005, ISO4210-2014

Technical Parameters

Seat tube load	70Kg-90Kg
Frame drop height	200-300mm
Height marker	can be adjusted according to the height of the test piece combination zero marker
The upper and lower limit	moving device upper and lower limit protection switch and positioning
Falling trigger	Adopt electromagnetic clutch device
Weight	160KG
Power supply	AC220V,15A
Dimension	20007001750mm (WDH)
